多壁納米管JCMT-95-5-15,JCMT-95-8-20,JCMT-95-11-10,JCMT-95-8-20,JCMT-95-15-20,JCMT-95-25-20,JCMT-95-40-15,JCMT-95-50-15,JCMT-95-75-15
圖片及文字介紹僅供參考，請以實物為準
碳納米管具有典型的層狀中空結構特征,由六邊形碳環微結構單元組成,是一種具有特殊結構的一維量子材料。它主要由呈六邊形排列的碳原子構成數層到數十層的同軸圓管。由于其獨特的結構，碳納米管的研究具有重大的理論意義和潛在的應用價值，如它有望用作為分子導線，納米半導體材料，催化劑載體，分子吸收劑和近場發射材料等, 有望廣泛地應用于諸多領域.
近幾年來研究表明碳納米管具有很好的催化特性，可以用作催化劑，替代金屬氧化物，甚至貴重金屬。 例如，碳納米管可用于烷烴脫氫反應的催化劑，不僅顯著提高了丙烯、丁烯、丁二烯、苯乙烯等烯烴的選擇性，而且可以將工業路線的反應溫度降低約200～300攝氏度，乙苯等烷烴氧化脫氫選擇性高于90%，且烷烴脫氫反應溫度比現有工業化過程低200- 300度。
參考文獻
Angew. Chem. Int. Ed. 46, 7319 (2007)
Science, 322, 73 (2008)
Angew. Chem. Int. Ed. 48, 6913 (2009)
Angew. Chem. Int. Ed. 51, 7581 (2012)
多壁碳納米管JCMT-98-5-15
|
Purity |
>95wt% |
|
OD |
4~6nm |
|
Length |
10-20μm |
|
SSA |
~500m2/g |
|
ASH |
<1.5wt% |
|
EC |
>100s/cm |
|
價格：50元/克 |
多壁碳納米管JCMT-95-8-20
|
Purity |
>95wt% |
|
OD |
8<nm |
|
Length |
10-30μm |
|
SSA |
>350m2/g |
|
ASH |
<1.5wt% |
|
EC |
>100s/cm |
|
價格：32元/克 |
多壁碳納米管JCMT-95-10-20
|
Purity |
>95wt% |
|
OD |
5~15nm |
|
Length |
10~30μm |
|
SSA |
200~240m2/g |
|
ASH |
<3wt% |
|
EC
|
>100s/cm |
|
價格：32元/克 |

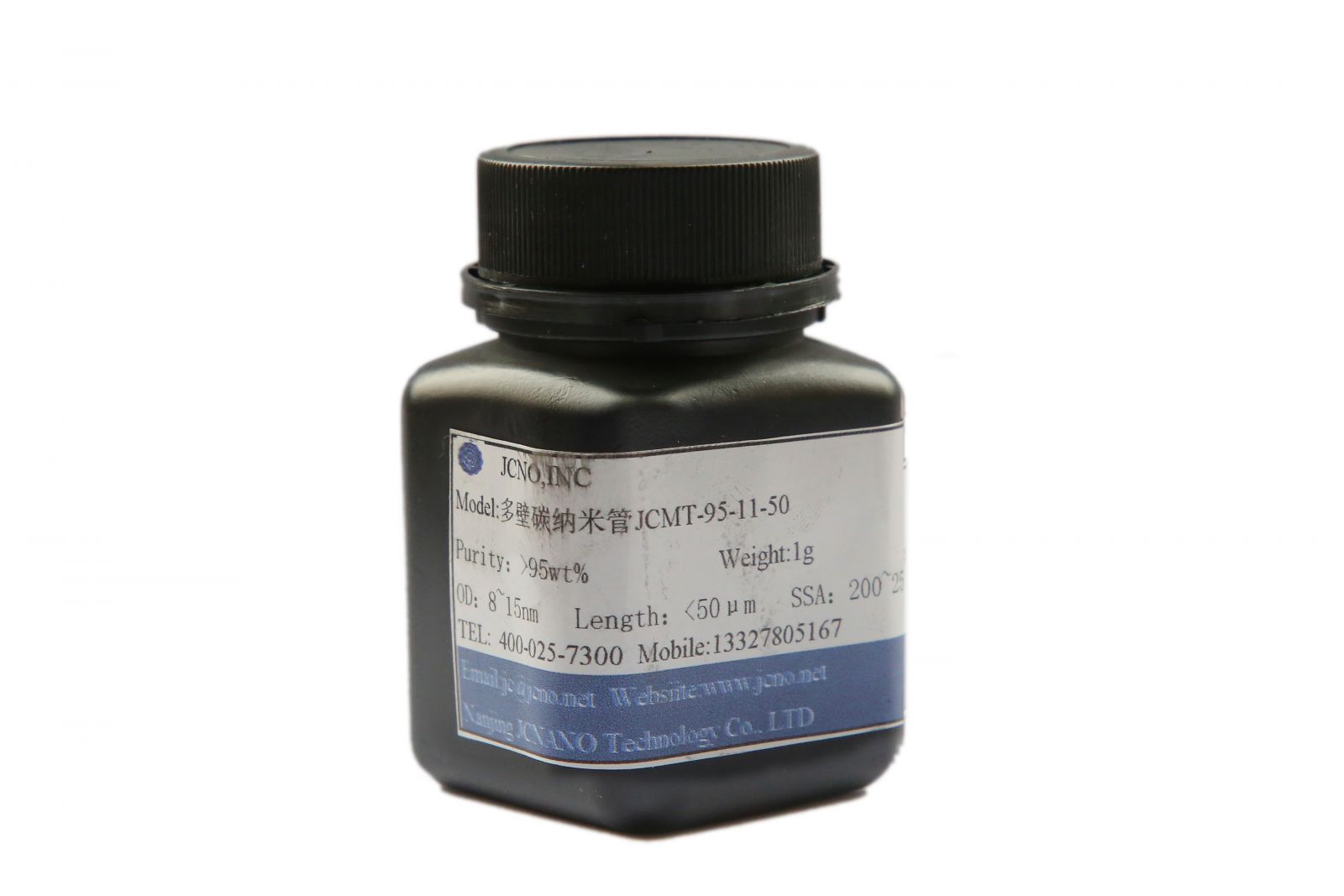

多壁碳納米管JCMT-95-11-50
|
Purity |
>95wt% |
|
OD |
8~15nm |
|
Length |
<50μm |
|
SSA |
200~250m2/g |
|
ASH |
<1.5wt% |
|
EC |
>100s/cm |
|
價格：32元/克 |
多壁碳納米管JCMT-95-15-20
|
Purity |
>95wt% |
|
OD |
10~20nm |
|
Length |
10~30μm |
|
SSA |
>150m2/g |
|
ASH |
<3.0wt% |
|
EC |
>100s/cm |
|
價格：32元/克 |
多壁碳納米管JCMT-95-15-60
|
Purity |
>95wt% |
|
OD |
10~20nm |
|
Length |
20~100μm |
|
SSA |
>150m2/g |
|
ASH |
<3.0wt% |
|
EC |
>100s/cm |
|
價格：32元/克 |
多壁碳納米管JCMT -95-11-10價格：20元/克，可以噸級供貨。
|
PROPERTIES |
UNITS |
VALUES |
|
Average Diamerer(od) |
nm |
11 |
|
Average Length |
µm |
10 |
|
Purity |
% |
>95 |
|
Amorphous Carbon |
% |
Not Detectable |
|
Metal Oxides(Impurity) |
% |
<5 |
|
Surface Area(bet) |
m²/g |
>200 |
|
Tap Density |
g/cm³ |
0.013-0.15 |
多壁碳納米管JCMT-999-11-10價格40元/克，可以噸級供貨。
|
PROPERTIES |
UNITS |
VALUES |
|
Average Diamerer(od) |
nm |
11 |
|
Average Length |
µm |
10 |
|
Purity |
% |
>99.9 |
|
Amorphous Carbon |
% |
Not Detectable |
|
Metal Oxides(Impurity) |
% |
<5 |
|
Surface Area(bet) |
m²/g |
>200 |
|
Tap Density |
g/cm³ |
0.013-0.15 |
多壁碳納米管JCMT-95-11-50
|
Making method |
CVD |
|
Purity |
>95wt% |
|
ID |
3-5nm |
|
OD |
8-15nm |
|
Length |
-50μm |
|
SSA |
>233m2/g |
|
ASH |
<1.5wt% |
|
EC |
>100s/cm |
|
價格：34元/克 |
多壁碳納米管JCMT-95-20-20
|
Purity |
>95wt% |
|
ID |
5-10nm |
|
OD |
10-30nm |
|
Length |
10-30μm |
|
SSA |
>110m2/g |
|
ASH |
<1.5wt% |
|
Making method |
CVD |
|
EC |
>100s/cm |
|
價格：34元/克 |
多壁碳納米管JCMT-95-30-20
|
Purity |
>95wt% |
|
ID |
5-10nm |
|
OD |
20-40nm |
|
Length |
10-30μm |
|
SSA |
>80m2/g |
|
ASH |
<5wt% |
|
Making method |
CVD |
|
EC |
>100s/cm |
|
價格：34元/克 |
多壁碳納米管JCMT-95-50-10
|
Purity |
>95wt% |
|
ID |
5-15nm |
|
OD |
>50nm |
|
Length |
<10μm |
|
SSA |
>60m2/g |
|
ASH |
<5wt% |
|
EC |
>100s/cm |
|
Making method |
CVD |
|
價格：24元/克 |
以上最小訂量：10克，
貨值不足500元，需另收22元運費。
TEM
1.The multi-wall carbon nanotubes(MWNTS)are produced by a catalytic vapor deposition process.
2.The main industial usage of MWNTs is an additive in polymers、rubbers、merals、and others by leveraging its high electrical and themal conductivity,superior mechanical property and very high aspect ratio. The current applicationgs of MWNTs include conductive plastics, Li-ion batteries,sports goods,and so on.
